Components and Accessories

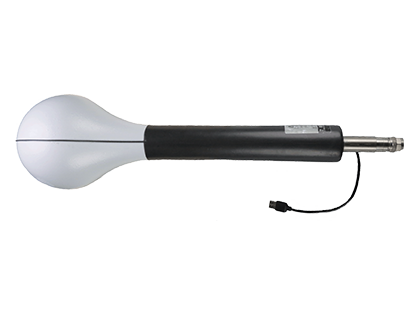

Isotropic Antenna 2000-1800-R
In order to conduct EMF measurements, an Anritsu isotropic antenna is required. Anritsu offers the 2000-1800-R isotropic antenna for use with the Electromagnetic Field Measurement System.
Key Features
- The 2000-1800-R isotropic antenna is a tri-axis H-Field sensor with an integrated RF switch
- The RF switch is controlled by the analyzer via a USB port
- Each antenna is individually characterized and comes with a certificate of conformance and supporting test data
- Integrated solution for Electromagnetic Field Strength measurements for health and safety
- Wide dynamic range and fast switching time
- Automatic download of antenna factors and various demodulation options available
Technical Specifications
| Model | 2000-1800-R |
|---|---|
| Frequency Range | 9 kHz — 300 MHz |
| Compression Point | 1 dB |
| Output | 118 dbμV typical |
| Decoupling of the Axis | 20 dB typical |
| VSWR | 1.5 (20 KHz — 50 MHz) typical |
| RF Connector | N-Connector Male |
| Impedance | 50 Ω |
