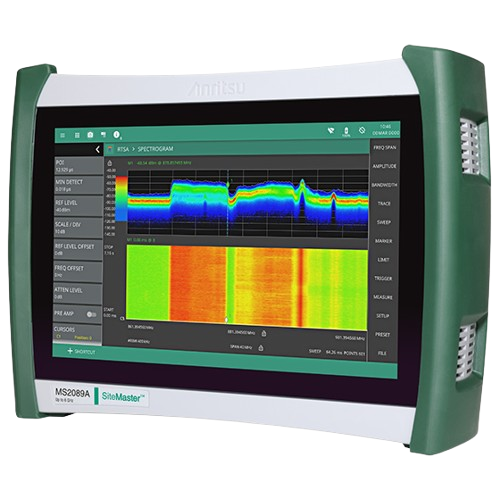

Site Master Handheld Cable And Antenna Analyzer with Spectrum Analyzer and VNA Option MS2085A-MS2089A
MS2085A Cable and Antenna Analyzer 5 kHz to 4 GHz or 6 GHz Vector Network Analyzer Option 5 kHz to 4 GHz or 6 GHz. MS2089A Cable and Antenna Analyzer 5 kHz to 4 GHz or 6 GHz Spectrum Analyzer 9 kHz to 4 GHz or 6 GHz Vector Network Analyzer Option 5 kHz to 4 GHz or 6 GHz
The latest Generation Anritsu Site Master integrates cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and VNA functionalities, offering a comprehensive testing solution for professionals in the wireless industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyzer with Integrated spectrum analyzer caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.
Key Features
- Built-in PDF/HTML report generation
- 350 μs/data point in fast sweep mode
- 105 dB of dynamic range from 50 kHz to 3 GHz typical
- Return Loss, Cable Loss, VSWR, Distance-To-Fault, Time Domain Reflectometry, Smith Chart, 1-Port Phase
- Cable and Antenna Analyzer: 5 kHz to 4, 6 GHz
Technical Specifications
| Sweep Speed (fast sweep mode) | 350 µs per data point (Cable & Antenna Analyzer) |
|---|---|
| Spectrum Analyzer Frequency Range | 9 kHz to 4 GHz or 6 GHz (depending configuration) |
| Cable & Antenna / VNA Frequency Range | 5 kHz to 4 GHz or 6 GHz |
| Analyzer Type | Handheld Cable & Antenna Analyzer + Spectrum Analyzer (option) + optional VNA |
